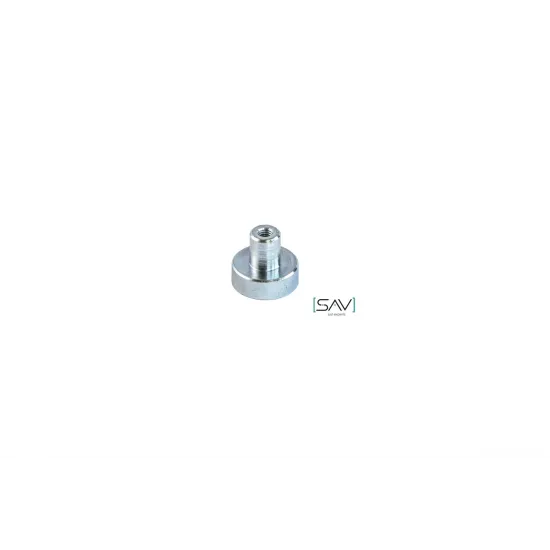

Ferrite pot magnet with threaded bushing ∅ 13 x 4.5 mm, M3

Type: SAV 240.02. Pot magnet made of hard ferrite, with zinc shield and threaded bushing.
These pot magnets are equipped with a steel casing that shields the magnetic field and also forms a magnet system that increases the pull force of the magnet.

Do you want to go magnet fishing? Then use the Ø80 & 100 mm version. These are very suitable for fishing (lost) metal items out of the water. Make your magnet ready for fishing with rope and an eye bolt: you can find this here.

Maximum operating temperature: Zinc version: 200°C.

Note: The full holding force is only achieved when the ferromagnetic counterpart is smooth and thick enough and the pot magnet connects directly and over its entire surface.
Pot magnets lose a lot of holding force from a distance of half a millimeter from the ferromagnetic surface.
This property is more pronounced in pot magnets than in other ferrite magnets and neodymium magnets.

In outdoor use, the steel pots can get fly rust, which does not limit the operation of the magnets.

F10A-vM3 / F13A-vM3 / F16A-vM3 / F20A-vM3 / F25A-vM4 / F32A-vM4 / F36A-vM4 / F40A-vM4 / F40A-vM5 / F47A-vM6 / F50A-vM6 / F57A-vM6 / F63A-vM6 / F63A-vM8 / F80A-vM8 / F80A-vM10 / F100A-vM12 / F125A-vM14
