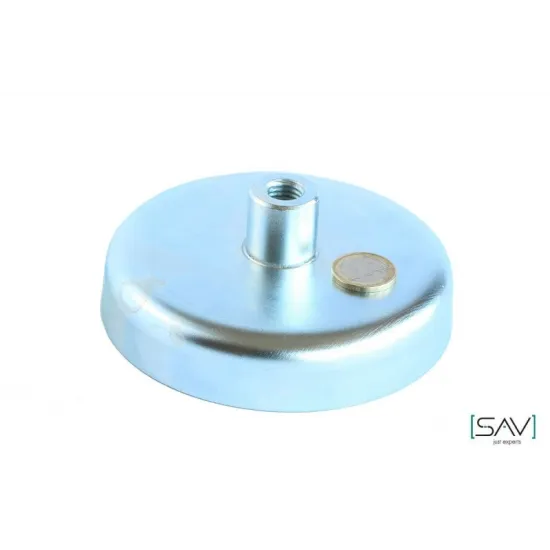

Ferrite pot magnet with threaded bushing Ø 125 x 26 mm M14

Type: SAV 240.02. Hard ferrite pot magnet with galvanized shielding and threaded bushing.
These pot magnets are equipped with a steel housing that shields the magnetic field and also forms a magnetic system which increases the pulling force of the magnet.

Note: The full holding force is only achieved when the ferromagnetic counterpart is smooth and thick enough and the pot magnet connects directly and over its entire surface.
Pot magnets lose a lot of holding force from a distance of half a millimeter from the ferromagnetic surface.
This property is more present in pot magnets than in other ferrite magnets and neodymium magnets.

In outdoor use, the steel pots can acquire fly rust, which however does not limit the operation of the magnets.

Would you like to go magnet fishing? Then use the Ø80 & 100 mm version. These are very suitable for fishing (lost) metal items out of the water. Make your magnet ready for fishing with rope and an eye bolt: you can find it here.

Maximum operating temperature: Galvanized version: 200°C.

F10A-vM3 / F13A-vM3 / F16A-vM3 / F20A-vM3 / F25A-vM4 / F32A-vM4 / F36A-vM4 / F40A-vM4 / F40A-vM5 / F47A-vM6 / F50A-vM6 / F57A-vM6 / F63A-vM6 / F63A-vM8 / F80A-vM8 / F80A-vM10 / F100A-vM12 / F125A-vM14
